Soldering Bellows to Temperature Switch

  • Dual transformers heat parts alternately left and then right.
  • Spring loaded swing clamps allow secure alignment of bellows to brass part.
  • Cool running 5 Kw SCR inverter used.
  • Air cooling quenches part after heating.

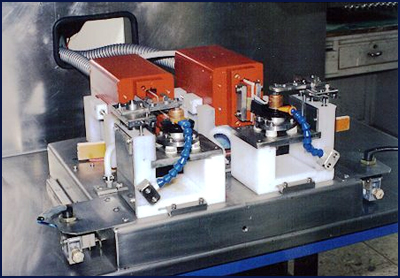

Soldering bellows to temperature switch station
Two types of temperature switches aligned and soldered
Two types of temperature switches have bellows aligned and soldered.
