Brazing Bronze Bellows to Brass Casting

  • Dual concentric heating coils heat top and bottom of bellows simultaneously.
  • Transformer raises and lowers to accomodate heating and then removal of the finished part and insertion of next part.
  • Shuttle moves alternatively left and right as parts are loaded, heated, and later unloaded.
  • All-pneumatic control system provides semi-automatic operation, high production rate with only one operator.
Brazing bronze bellows to brass casting
Door handle production for Jeep and Grand Cherokee SUVs

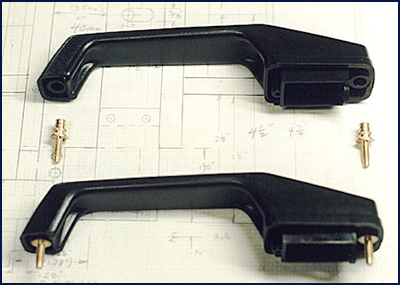

Door handle for Jeep and Grand Cherokee SUV's

  • Quad heating coil system (not shown) heats 4 brass rivets simultaneously and then positions them into two plastic molded door handles -- all automatically!
  • Production rate: about 1500 to 2000 door handles per day.
