INDUCTION BRAZING SYSTEM

INDUCTION BRAZING

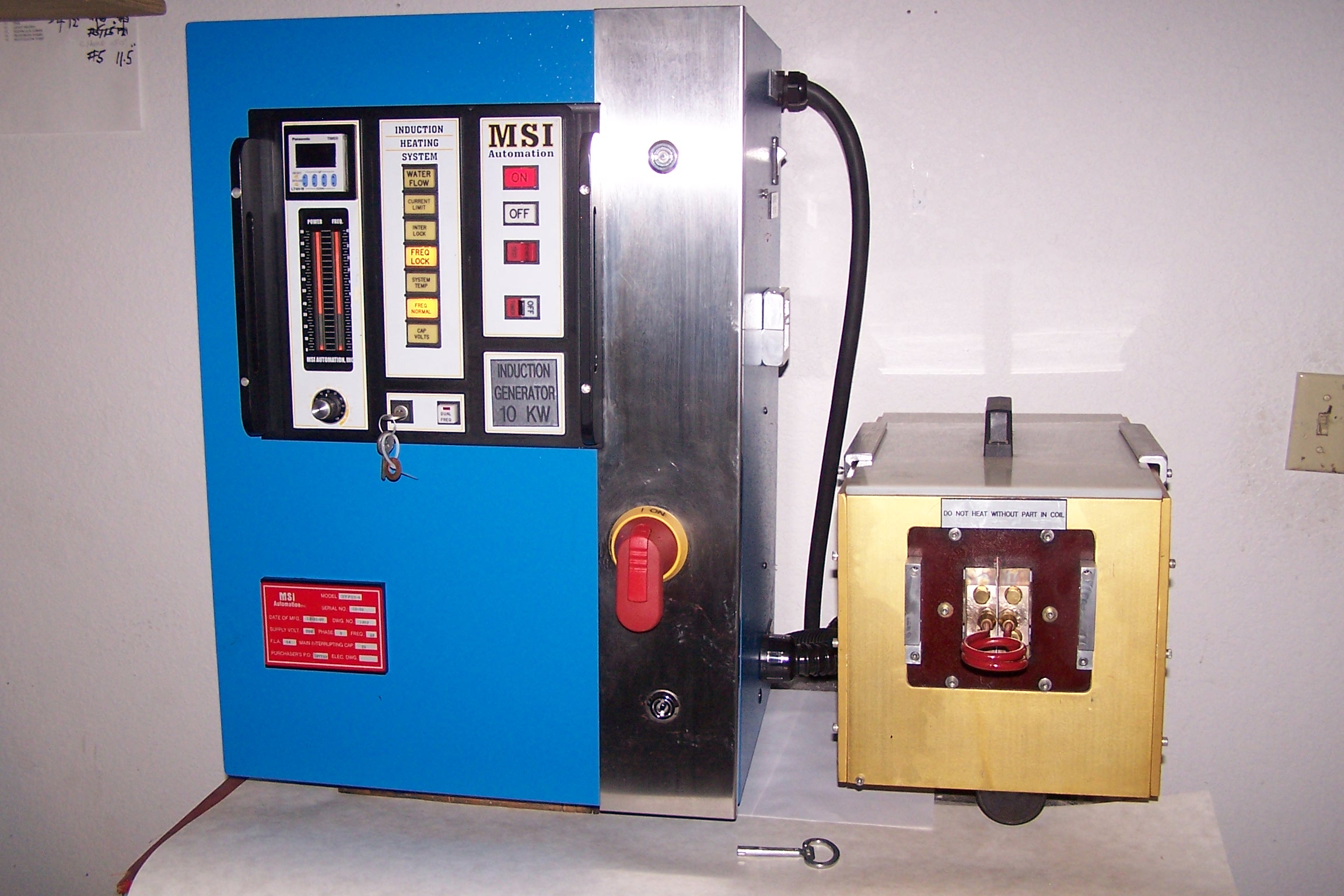

DESCRIPTION: The state of the art system from MSI Automation is for industrial applications. The power supply shown above is available for power output levels of 5-25 kW. The internal circuitry is provided for medium and high frequency heating. The choice of the power level and frequency depends upon the type of induction heating that is required. (see below examples)

OPERATOR CONTROL: The power unit has industry standard safety features as on/off switches, key lock, 3-phase disconnect switch and 3 phase circuit breaker. The front panel features a full display, power regulation (0-100%) and digital cycle timer.

KEY FEATURES:

  1. 5-25 kW POWER RANGE
  2. MEDIUM FREQUENCY SYSTEM (25-50 kHz)
  3. HIGH FREQUNECY SYSTEM (150-400 kHz)
  4. BUILT-IN DIGITAL TIMER
  5. OPTIONAL FIBER OPTIC SENSOR SYSTEM
  6. PROGRAMMABLE CONTROLLER (PLC) FOR AUTOMATION APPLICATIONS

HEAT STATION OPTIONS
A variety of heat stations are available that work in conjunction with the power supply shown on the first page:

INDUCTION BRAZING

INDUCTION BRAZING

CARBIDE CUTTING TOOL BRAZING

INDUCTION BRAZING OF PUMP MOTOR

INDUCTION BRAZING
DUAL BRAZING STATION
(ALTERNATES BEWEEN HEATING LEFT AND RIGHT POSITIONS.)

INDUCTION BRAZING

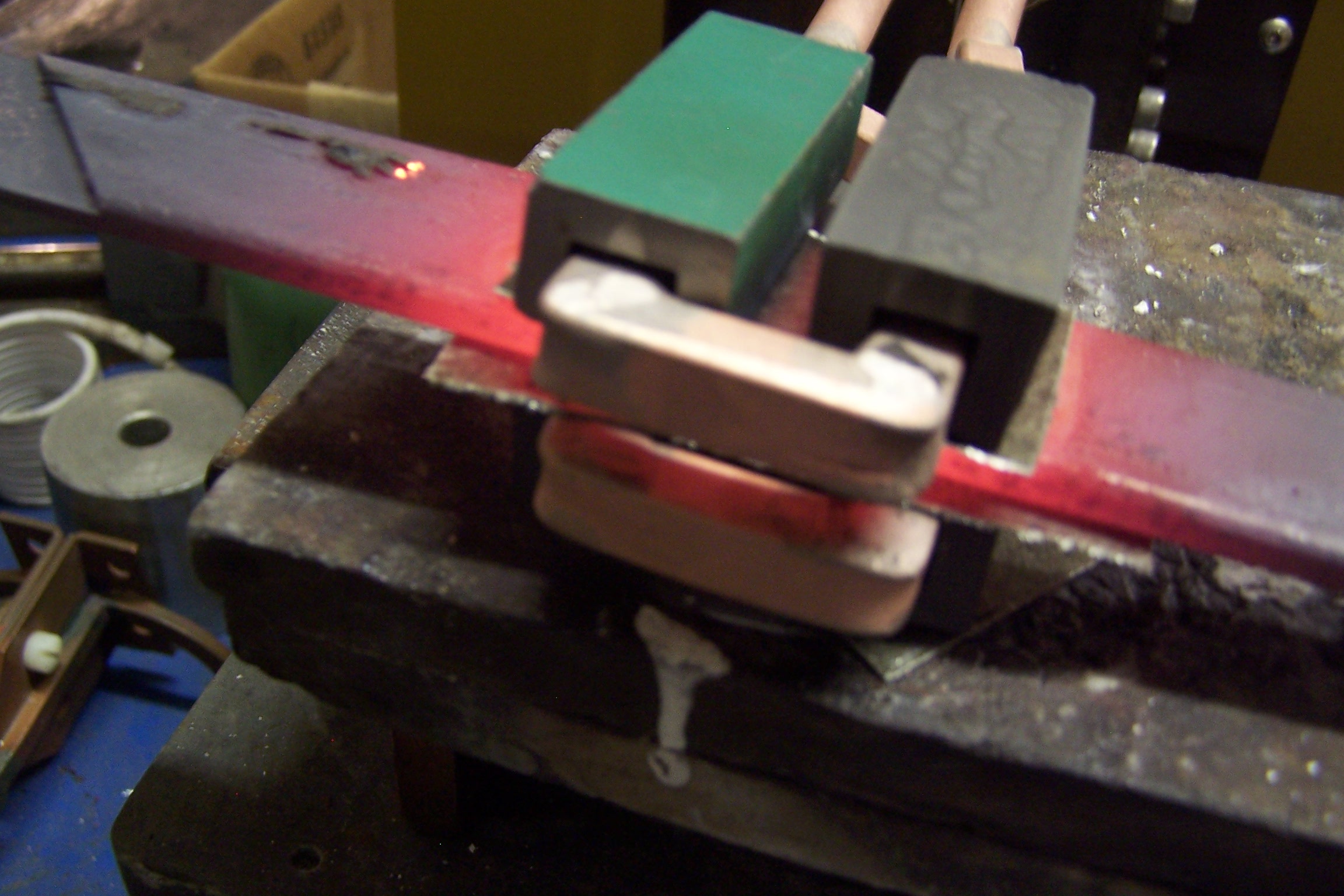

BRAZING COPPER BUS BAR WITH DOUBLE FORK COIL

INDUCTION BRAZING

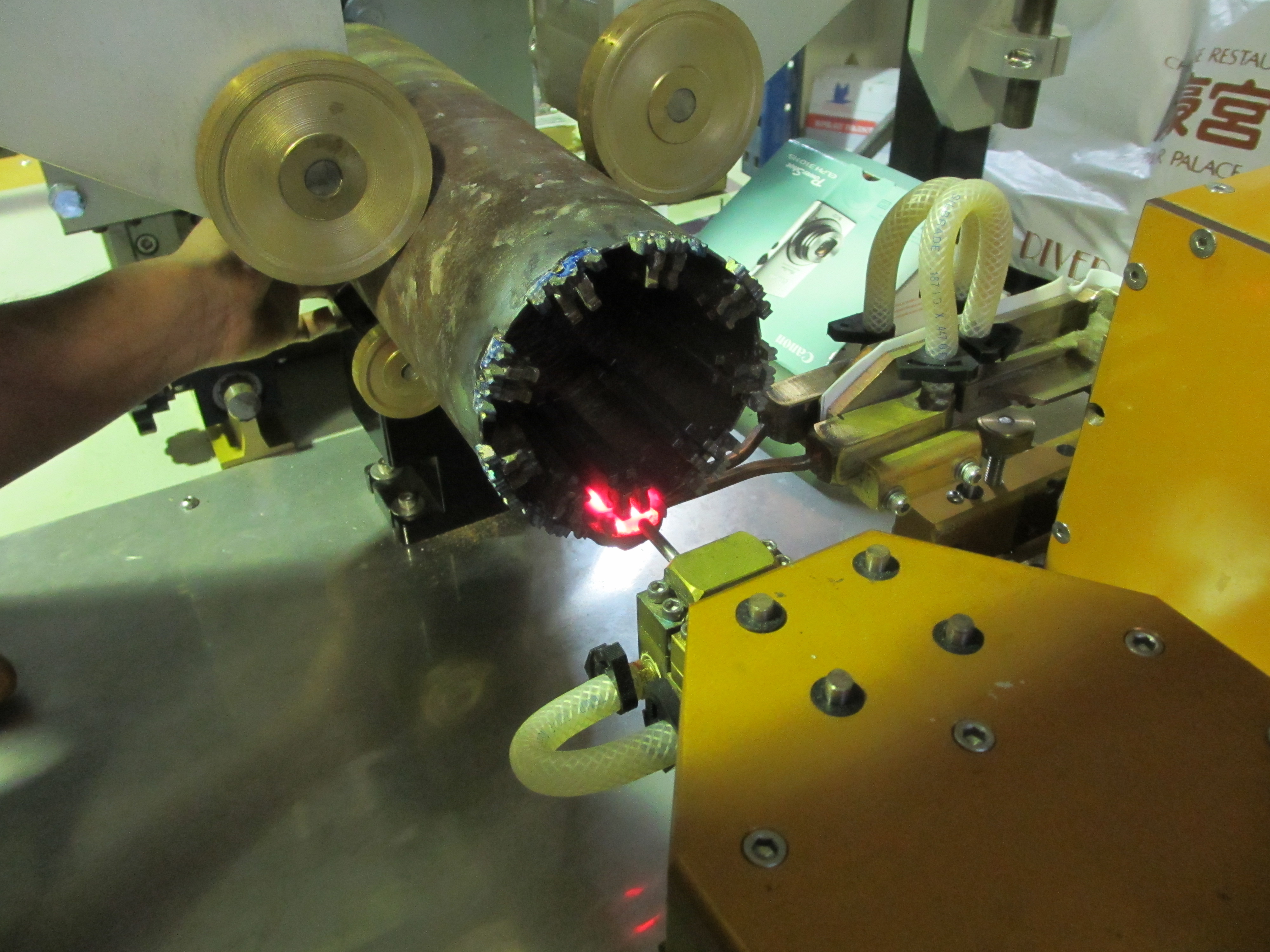

CORE DRILL INDUCTION BRAZING

INDUCTION BRAZING
PRESSURE CLAMP BRAZING FOR MEDICAL DEVICE
