Heat Treating Small Parts

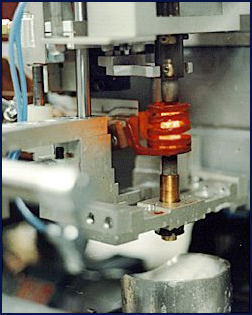

Full automatic part fixturing system fed by vibrator bowl feeder. Part lowered automatically into heating coil Part rotated by small overhead motor while being heated At end of PLC-controlled heat cycle, lower ceramic pin releases and part drops into turbulent quench tank.
