Diamond Saw Blade Brazing MachineDiamond Saw Blade Brazing Machine

  • Full automatic brazing machine loads and unloads blades without operator intervention.
  • Up to 25 blades can be processed continuously
  • Repeat segment accuracy within +/- .003" (+/- .08mm)
  • Blade sizes: 8 - 40" (200-1000mm) diameter
  • Skip step brazing technique used
  • By-pass segment position, non-uniform segment position, insert segment positions all automatically compensated

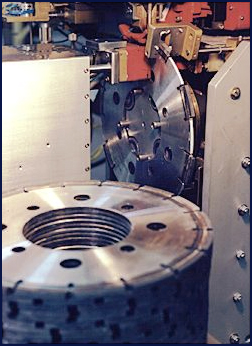

  • Grinder blades with center holes up to 6" (150mm) are no problem.
  • 3 step heating ramp included

  • 18" grinder blades in production.
  • 2" x 1/4" (50mm x 6mm) segments.
  • 10 Kw induction generator heats in 8 to 9 seconds.
  • Water cooled copper clamps hold blade.

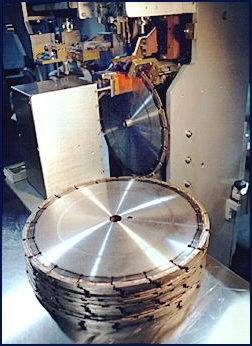

  • 16" blades.
  • Cooling cycle after heating cycle controls blade temperature.
  • Rotation of blade controlled precisely.

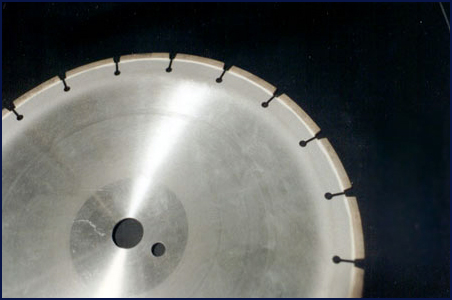

Saw Blade after Dressing and Sandblasting Saw Blade after Dressing and Sandblasting

MSI Automation | Designed and Manufactured in the USA
