PORTABLE SMALL INDUCTION HEATER

(Brazing and Heat Treating: 5-15 kW)

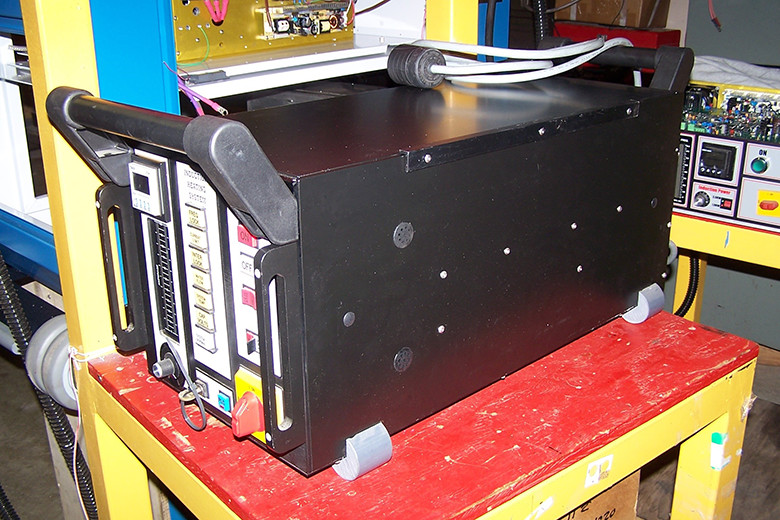

PORTABLE INDUCTION HEATER

DESCRIPTION: The state of the art system from MSI Automation is suitable for industrial and naval applications where portability is essential. The power supply shown above is available for power output levels of 5-15 kW. The choice of the power level depends upon the type of induction brazing that is required. A Hand Held Heat Station is included with the system. The Power cable between the Power Supply and the Heat Station can be up to 10 meters.

OPERATOR CONTROL: THE POWER UNIT HAS STANDARD FEATURES AS ON/OFF SWITCHES, KEY LOCK AND (0-100%) POWER REGULATION KNOB ON THE FRONT PANEL. SEVEN STATUS LAMPS ON THE FRONT PANEL INDICATE OPERATING CONDITIONS.

DIMENSIONS: Length: 24”, Height: 12”, Width: 12”, Weight: 70 Lbs.

Portability: Lift handles at both ends. Power input and output cables at the rear of the unit. Water connections at the rear of the unit.

Requirements: Water cooling: 2 GPM @ 30 psi / Electric Power: 110-240 VAC Single Phase / 240/480 VAC 3-Phase

HEAT STATION OPTIONS

A VARIETY OF HEAT STATIONS ARE AVAILABLE. THE HEAT STATIONS ARE HAND UNITS WITH THEIR OWN POWER SWITCH. HEATING COILS ARE SPECIALLY COATED WITH SAFETY SHELD OF CERAMIC. A FERRITE INTENSIFIER IS USED IN SOME CASES TO CONCENTRATE THE HEATING.

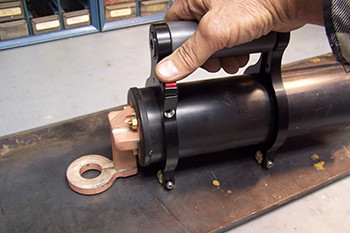

SURFACE HEATING COIL

SURFACE HEATING COIL

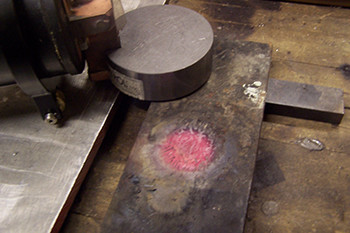

SURFACE HEATING ½” THICK STEEL

SURFACE HEATING ½” THICK STEEL

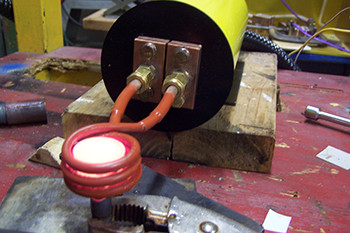

HEATING CARBIDE INSERT

HEATING CARBIDE INSERT

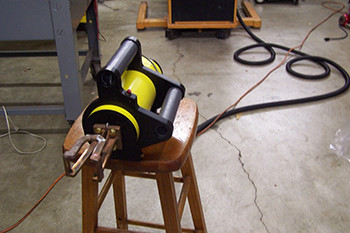

HAND UNIT WITH 10 METER CABLE

HAND UNIT WITH 10 METER CABLE
